Nýtt

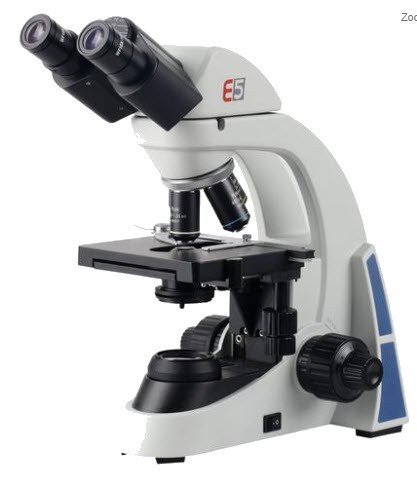

Sjónauka smásjá BE5
3B1020250
Lýsing
Viðsjá - Módel BE5
Stækkun 40x, 100x, 400x, 1000x
Sjónpípulinsa (augnlinsa) 30°hallandi, hægt að snúa 360°
Augnsýn milli 54 og 74 mm, dýpt ±5
Augnstykki 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil
Lýsing: Innbyggð stillanleg LED lýsing, 100 til 230 V, 50/60 hz
Stærð 350 mm x 213 mm x 366 mm
Þyngd 8 kíló
Afhent með hlíf
Framleiðandi : 3B Scientific
The microscope BE5 stands out - thanks to :
• It´s ergonomic design with 30° angled eyepiece
• It´s compact and robust construction
• It´s excellent mechanical and optical quality
• It´s ease of operation
LED fibre optic illumination integrated into the base
• Ensures even illumination of the field of vision
• Prevents thermal effects from affecting the sample during prolonged examination
• Features a long operating life and makes lamp replacement superfluous
Stand : Robust, all metal stand with arm permanently connected to the base. Focussing by means of separate knobs for coarse and fine adjustment located on either side of the stand and operated by rack and pinion drive with ball bearings and retaining lever, adjustable stopper for protecting the object slides and objective.
Resolution of fine focussing adjustment: 0.002 mm
Tube : Binocular head, 30° viewing angle, 360° rotatable head, viewing distance adjustable between 50 and 75 mm, ±5 dioptric compensation
Eyepiece : Pair of wide field plan eyepieces PL 10x 18 mm
Objectives : Inverted objective revolver with 4 achromatic objectives 4x / 0.10, 10x / 0.25, 40x / 0.65, 100x / 1.25 (oil)
Enlargement : 40x, 100x, 400x, 1000x
Object Stage : x-y mechanical stage, 132 mm x 140 mm, with object guide and coaxial adjustment knobs perpendicular to the object stage, adjustment range 76 mm x 50 mm, accuracy 0.1 mm
Illumination : Adjustable LED lighting integrated in base, universal 100 to 240 V, 50/60 Hz power supply
Condenser : Abbe condenser N.A.1.25 with iris diaphragm , filter holder and blue filter
Dimensions : 350 mm x 213 mm x 366 mm approx.
Weight : 8 kg approx.
Supplied : Complete with dust cover
Stækkun 40x, 100x, 400x, 1000x
Sjónpípulinsa (augnlinsa) 30°hallandi, hægt að snúa 360°
Augnsýn milli 54 og 74 mm, dýpt ±5
Augnstykki 4x/0.10, 10x/0.25, 40x/0.65, 100x/1.25 oil
Lýsing: Innbyggð stillanleg LED lýsing, 100 til 230 V, 50/60 hz
Stærð 350 mm x 213 mm x 366 mm
Þyngd 8 kíló
Afhent með hlíf
Framleiðandi : 3B Scientific
The microscope BE5 stands out - thanks to :
• It´s ergonomic design with 30° angled eyepiece
• It´s compact and robust construction
• It´s excellent mechanical and optical quality
• It´s ease of operation
LED fibre optic illumination integrated into the base
• Ensures even illumination of the field of vision
• Prevents thermal effects from affecting the sample during prolonged examination
• Features a long operating life and makes lamp replacement superfluous
Stand : Robust, all metal stand with arm permanently connected to the base. Focussing by means of separate knobs for coarse and fine adjustment located on either side of the stand and operated by rack and pinion drive with ball bearings and retaining lever, adjustable stopper for protecting the object slides and objective.
Resolution of fine focussing adjustment: 0.002 mm
Tube : Binocular head, 30° viewing angle, 360° rotatable head, viewing distance adjustable between 50 and 75 mm, ±5 dioptric compensation
Eyepiece : Pair of wide field plan eyepieces PL 10x 18 mm
Objectives : Inverted objective revolver with 4 achromatic objectives 4x / 0.10, 10x / 0.25, 40x / 0.65, 100x / 1.25 (oil)
Enlargement : 40x, 100x, 400x, 1000x
Object Stage : x-y mechanical stage, 132 mm x 140 mm, with object guide and coaxial adjustment knobs perpendicular to the object stage, adjustment range 76 mm x 50 mm, accuracy 0.1 mm
Illumination : Adjustable LED lighting integrated in base, universal 100 to 240 V, 50/60 Hz power supply
Condenser : Abbe condenser N.A.1.25 with iris diaphragm , filter holder and blue filter
Dimensions : 350 mm x 213 mm x 366 mm approx.
Weight : 8 kg approx.
Supplied : Complete with dust cover
