Sine Wave Generator
PASWA-9867
Lýsing
Sine Wave Generator.
Ath.: Sérpöntunarvara - Verð vörunnar er einungis til viðmiðunar! Leitið verðtilboða

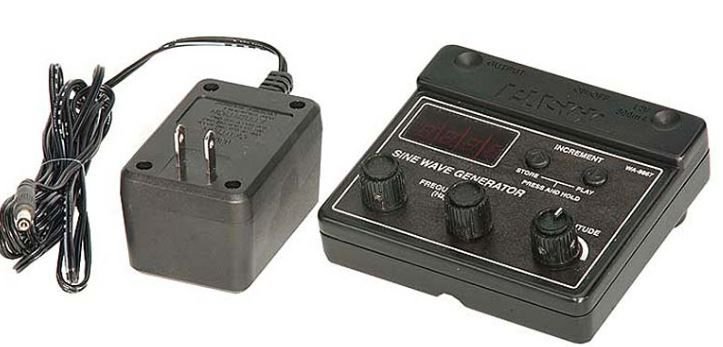

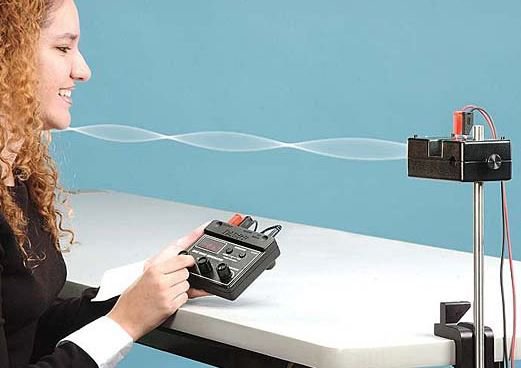

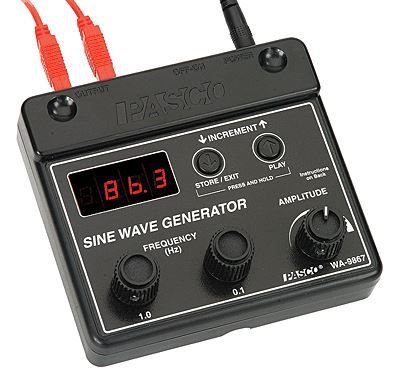

The Sine Wave Generator is an excellent tool for generating waves with speakers or wave drivers. It allows both the frequency (1-800 Hz) and amplitude of the sine wave output to be varied. Both fine and coarse frequency controls are included and the digital display features a 0.1 Hz resolution. In addition, the generator can "learn" the fundamental frequency for a particular configuration. Students can observe the quantum nature of standing wave patterns as the Sine Wave Generator jumps from one resonant frequency to the next.
Typical Applications
- Wave Patterns in Strings
- Resonant Frequencies in Air
Features
- Custom Plastic Case -- Designed to withstand student use; includes angled rubber feet for ease of use and rear rod clamp for additional mounting options. Cases are also stackable for easy storage.
- Digital Display -- Frequency is displayed with 0.1 Hz resolution using red LEDs.
- Frequency Adjustment -- Adjust the frequency of the output with either the fine (0.1 Hz) or coarse (1 Hz) knobs. The knobs include a "smart scan" feature so they change frequency more quickly when continuously turned.
- Amplitude Adjustment -- Change the voltage of the sine wave signal.
- "Learn" Frequency -- The Sine Wave Generator will store a frequency increment, then cycle through the selected frequency range by the increment automatically; very useful for resonance demonstrations or activities.
- Built-in clamp can be used to mount the generator on a standard rod
Framleiðandi: Pasco Scientific (www.pasco.com).
