LRC Circuit
PASEX-5537
Lýsing
Product Summary

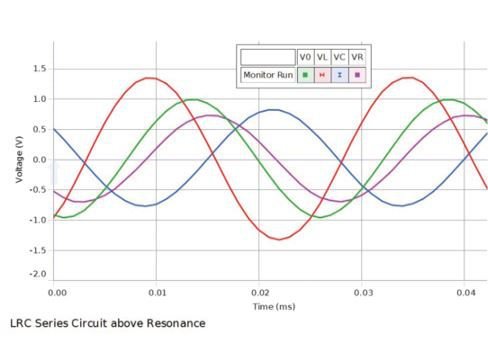

The response of a series LRC circuit is examined at driving frequencies above, below, and at the resonant frequency. A sinusoidal voltage is applied individually to a resistor, a capacitor, and an inductor. The amplitude of the current and the phase difference between the applied voltage and the current are measured in each of the three circuits to see the effect each component has on the current. Finally, a sinusoidal voltage is applied to an inductor, resistor, and capacitor in series. The amplitude of the current and the phase difference between the applied voltage and the current are measured and compared to theory.
Concepts
LC oscillations
Inductive, capacitive, and resistive AC circuits
LRC resonant frequency

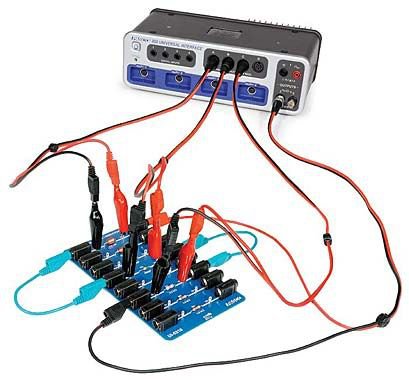

What's Included
1x Resistor Capacitor Inductor Network (UI-5210)
3x Voltage Sensor (unshrouded) (UI-5100)
8x Banana Plug Cord Sets, 30 cm Length (SE-7123)
1x BNC Function Generator Output Cable (unshrouded) (UI-5119)
Related Products & Accessories
Framleiðandi : Pasco Sicentific (www.pasco.com)
